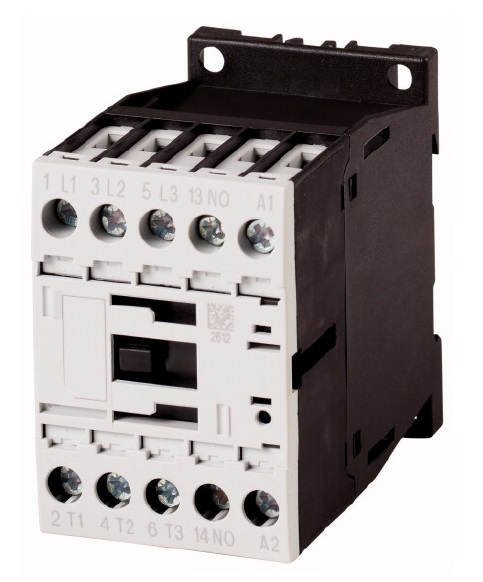

Размер 0, Тип Power contactor, Номинален ток 7A, Напрежение на бобината 230V, Вградени помощни контакти 1 НО
- DC-1 Rated operational current: –
- Rated impulse withsand voltage [Uimp]: 8000 V
- Тип „2“ координация 690 V [gG / gL 690 V]: 16 A
- Type „1“ coordination 400 V [gG/gL 500 V]: 35 A
- AC-3: –
- Type „1“ coordination 690 V [gG/gL 690 V]: 20 A
- Тип отвертка Phillips [спомагателни кабели]: PZ 2
- Terminal screw [main cable]: M3,5
- AC-3 Open, 3-pole: 50 – 60 Hz 440 V [Ie]: 7 A
- AC-4: –
- AC-1: –
- Open at 60 °C [Ith=Ie]: 20 A
- Elevator Control 240V 60Hz 3phase (HP): 1,50
- 50 Hz [Pick-up] (VA): 24
- Ambient temperature Enclosed: -25 / +40 °C
- PU: 102
- EMC Interference immunity: according to EN 60947-1
- 600 V High Fault max. Fuse: 25 Class RK5/20 Class J A
- Maximum motor rating General use: 20 A
- Resistance Air Heating 277V 60Hz 1phase: 12 A
- AC-4 Open, 3-pole, 50 – 60 Hz 660 V 690 V [Ie]: 4 A
- Опаковъчна единица: 1 m
- Open at 40 °C [Ith=Ie]: 22 A
- Refrig. Control (CSA only) FLA 480V 60Hz 3phase: 10 A
Артикулен номер: LTD00713
EAN: 9004840841039
